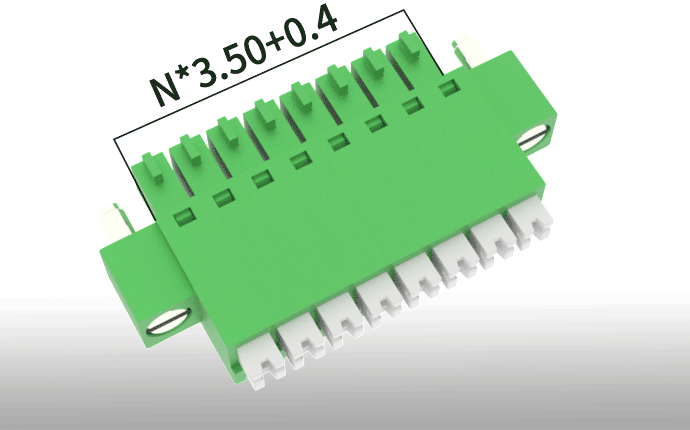

    Pluggable Terminal Block 2KF003M-3.50mm
    Pluggable Terminal Block MATERIAL:①Screws:Steel Zinc plated②Reed : Stainless steel③Clip : Phosphor bronze ④Button : PA66,UL94V-0 ⑤Housing : PA66,UL94V-0 ElectricalUL IEC &n
    Color
    • Kaifeng Electron
    • Kaifeng Electron
    Line count
    • 02P
    • 03P
    • 04P
    • 05P
    • 06P
    • 07P
    • 08P
    • 09P
    • 10P
    • 11P
    • 12P
    • 13P
    • 14P
    • 15P
    • 16P
    • 17P
    • 18P
    • 19P
    • 20P
    • 21P
    • 22P
    • 23P
    • 24P
    Kaifeng Electron Kaifeng Electron
    Consult more
    Kaifeng Electron Kaifeng Electron
    Product Parameters
    Kaifeng Electron Kaifeng Electron

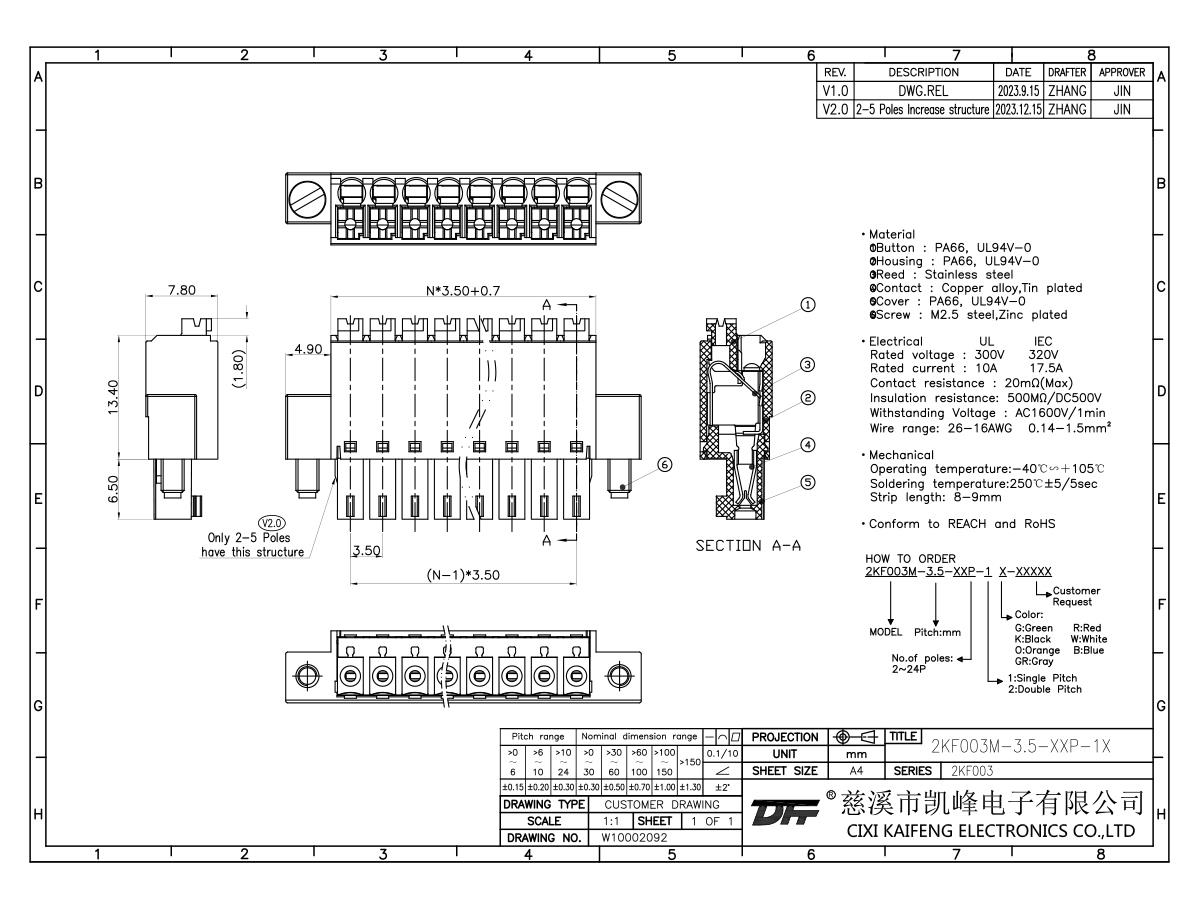

    Product Drawing
    Product Drawing Material Electrical Mechanlical Packaging
    Product Drawing
    Kaifeng Electron
    Material
    • Screws
      Steel Zinc plated
    • Reed
      Stainless steel
    • Clip
      Phosphor bronze
    • Button
      PA66,UL94V-0
    • Housing
      ?PA66,UL94V-0?
    Electrical
    • Rated voltage
      300V?UL丨?320V?lEC
    • Rated current
      10A?UL丨?17.5A?lEC
    • Contact resistance
      20m?
    • Insulation resistance
      500MΩ\DC500V
    • Withstanding voltage
      AC1500V\1Min
    • Wire range
      26-16AWG 0.14-1.5mm2
    Mechanlical
    • Temp.rang
      LOW-40℃ 丨TOP+105℃
    • Max.soldering
      +250℃,5sec
    • Torque
      -
    • Strip length
      8-9mm
    Packaging
    • Weight
      xg
    • SPQ
      12pcs
    • Packaging
      Bagged
    • MOQ
      12pcs
    • Packaging
      Box45cm*28cm*27cm
